Diaper stacker and bagger system
Optimize your diaper production with seamless stacking and bagging, ensuring high-speed operations and minimal waste.
Stacks and Bags Disposable Baby Diapers

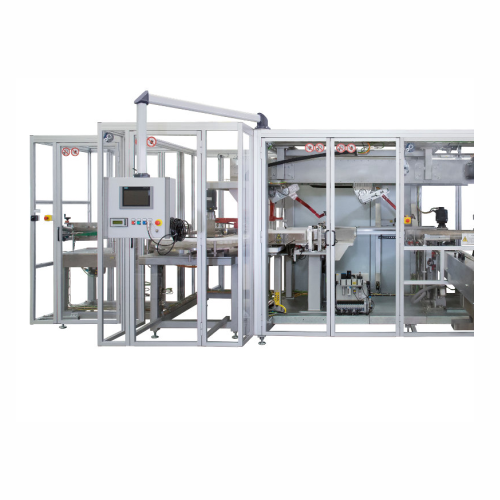

The SB50 GO Series B6, from GDM, is a high-speed stacking and bagging machine designed to streamline the packaging of disposable baby diapers and training pants. It utilizes an advanced continuous operation system that ensures a seamless flow from stacking to bagging, accommodating production speeds of up to 600 pieces per minute at the stacker and 50 bags per minute at the bagger. This equipment is ideal for tissue and hygiene industries, enhancing efficiency with its precise packaging capabilities and optimized waste reduction to just 1%.
Integrating easily with existing production lines, it incorporates robust PLC control for reliable, automated operation and features swift changeover times of just 30 minutes for product types and 10 minutes for size modifications. Its compact footprint, with a machine length of 6500 mm, and a machine weight of 8000 kg supports easy installation within various facility layouts.
The SB50 GO Series B6 meets rigorous EC Declaration of Conformity regulations, ensuring compliance and peace of mind for international operations. Offering versatility, the machine processes polyethylene film packaging, making it adaptable to different packaging requirements and ensuring product integrity.
Benefits
- Streamlines operations by integrating continuous stacking and bagging, enhancing production line efficiency.
- Minimizes waste production to only 1%, promoting sustainable operations and cost savings.
- Reduces changeover time to boost productivity, with product changes in 30 minutes and size adjustments in 10 minutes.
- Enhances operational reliability with compliance to EC regulations, ensuring safety and quality standards.
- Supports diverse packaging needs with adjustable configurations, catering to various product dimensions.
- Applications
- Baby pants,Baby diapers
- End products
- Disposable baby diapers,Baby training pants,Baby pull-up pants
- Steps before
- Product Stacking,Product Forming
- Steps after
- Bagging,Packaging
- Input ingredients
- stacker,baby disposable diapers,baby disposable pants
- Output ingredients
- bagger,bags,stacked baby diapers,stacked baby pants
- Market info
- GDM (Coesia Group) is known for its expertise in manufacturing high-performance machinery for the disposable hygiene industry, offering tailored solutions and innovative technologies for production efficiency and product quality.
- Production speed (stacker)
- 600 ppm,270 m/min
- Production speed (bagger)
- 50 bags/min
- Max efficiency
- 95%
- Operating mode
- Continuous
- Product changeover time
- 30 min
- Size changeover time
- 10 min
- Max waste
- 1%
- Machine depth
- 4590 mm
- Machine height
- 2570 mm
- Machine length
- 6500 mm
- Machine weight
- 8000 kg
- Packaging material
- Polyethylene film
- Packaging type
- Bag
- Input product thickness range
- Up to 15mm / 20mm
- Output row configuration
- Single row
- Max product length
- 280 mm
- Min product length
- 160 mm
- Max product width
- 140 mm
- Min product width
- 90 mm
- Automation level
- Continuous operation
- Production speed
- 600 ppm (stacker),50 bags/min (bagger)
- Max efficiency
- 95%
- Changeover time
- Product changeover
- Max waste
- 1%
- Batch vs. continuous operation
- Continuous
- Polyethylene film compatibility
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- CE marking
- 2056
- EC Declaration of Conformity
- Type II1A 2006/42/EC
- Machine depth
- 4590 mm
- Machine height
- 2570 mm
- Machine length
- 6500 mm
- Machine weight
- 8000 kg
- Control panel type
- HMI
- Integration possibilities
- Automation systems,linked machines
- Discharge method
- Stacking and Bagging
