Making Fruit Concentrate
Find innovative production technology for making fruit concentrate and connect directly with world-leading specialists
Originally created to supply US soldiers with vitamin C in World War II, fruit concentrate has found many other uses. Whether you want to drink soda or eat gummy bears, you need fruit concentrate for the color and flavor. The fruit concentrate processing line involves fruit peelers, conveyor belts, filters, and evaporators that help producers make fruit concentrate with all of the fruit’s original aroma.
Stories about fruit concentrate
Tell us about your production challenge
Fruit concentrate processing line
On the fruit concentrate processing line, fruits are washed with an industrial washing machine for fruits and vegetables, cleaned and checked for any anomalies. Then, if needed, industrial fruit peelers peel the fruit. Subsequently, the juice of the fruit is extracted and purified.
To make pure fruit concentrate, the water content is evaporated by increasing the solids content of the juice to 65-75%. To remove water from the fruit juice without damaging it with high temperatures, manufacturers use low temperature evaporators at a maximum temperature of 50 ºC. Heating the juice under low pressure reduces the boiling point which allows the water to evaporate faster.
Challenges in fruit juice concentrate processing – How can you solve them?

During concentration, you can greatly reduce the volume of juice while reducing storage, packaging and transportation costs. Nevertheless, concentration also brings some problems. Fruit juice can lose much of its aroma, color and nutrients during vacuum evaporation. Some other problems are the corruption of the concentrate in form of gel structures and browning during concentration.

To solve the problem of gelling, manufacturers turned to clarification. Clarification generally employs enzyme treatments with pectinase, cellulose, or mixed enzyme formulations which, along with filtration, clarify the juice by breaking down the fruit’s cell walls. Quality losses during evaporation are related to the product’s high temperature and residence time. To overcome this problem, evaporators that use lower temperatures and a short residence time can help maintain the flavor and nutritional content of the fruit. Color changes (browning) can also be avoided by processing and storing the juice at a lower temperature.

Many faces of fruit concentrates
Fruit juice concentrate processing is a complex operation that results in many different products. There are several varieties of fruit juice concentrates and they all vary in their fruit and sugar content. Fruit concentrates without any added sugar are mostly labeled as 100% fruit concentrates and only contain natural sugars.
On the other hand, fruit concentrate that has added sweeteners is used as flavoring in carbonated and noncarbonated drinks, candies and culinary goods. Some of the sweeteners added to fruit concentrate are high-fructose corn syrup, cane sugar or fructose syrup.
Lastly, powdered juice concentrates are made by dehydrating fruit concentrate. Mostly made by spray-drying concentrated fruit juice, powdered juice has a water content of 1-3%. Powdered juice is known for its ability to reduce inflammation and increase antioxidant levels.
Fruit puree vs fruit concentrate: what’s the difference?

Fruit puree and fruit concentrate may seem similar, but their manufacturing processes are quite different. Fruit puree is made from ground and homogenized fruit and has the fruit’s original water content. It is thicker than fruit concentrate and retains all the juice and the fibrous matter that the fruit naturally possesses. Also, fruit puree is deaerated – oxygen is expelled from the puree to prevent oxidization with iron particles in the fruit. It can be used as infant food, as an addition to alcoholic drinks (craft beer and fruit wine) or in jam production. Another similar yet different product is fruit-pulp which often gets confused with puree and concentrate.

On the other hand, fruit concentrate is made from fruit juice and the process requires evaporation. Unlike deaeration, evaporation eliminates the water content from the concentrate, lowering the volume to approximately one sixth of the original juice volume.
Processing steps involved in fruit concentrate making
Which fruit concentrate technology do you need?

Compact production unit for liquid food products with varied viscosities
In the food processing industry, achieving con...

Vegetable and fruit preparation table
In food processing environments, efficient and hygienic handling of vegetables and fr...

Receiving hopper for jumbo boxes
Handling large volumes of fruits and vegetables from jumbo boxes can be challenging in term...

Fruit processing and packaging line
In food production, handling large volumes of fruit efficiently while maintaining high ...

Grape destemming solution for efficient fruit processing
When preparing fruit salads, especially those including grapes, ...

High-capacity cutting solution for fruits and vegetables
In industrial food processing, cutting large quantities of fruit...

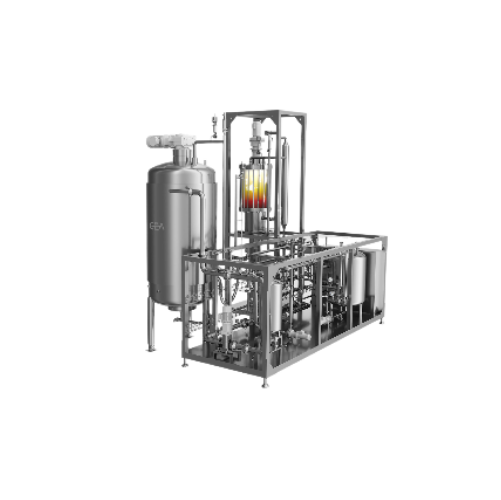

Industrial evaporators for multi-product processing
In food processing industries, efficient water removal from various p...

Aseptic sterilizer for fruit-based products
In the production of fruit-based products, maintaining sterility is crucial to...

Scraped surface sterilizers for food industry products
In the food industry, processing products like ketchup, sauces, da...

Evaporator for pulpy juice concentration
In the fruit processing industry, maintaining high-quality concentrates while redu...

Aseptic bag-in-box filler for juices and purees
When producing high volumes of juices, purees, or fruit concentrates, main...

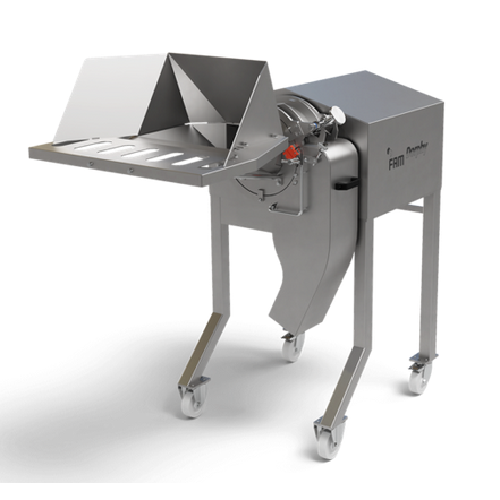

Vegetable and fruit dicer
When processing vegetables and fruits, achieving uniform cuts is essential for product consistency...

Fruit processing system for jams and marmalades
Producing high-quality fruit-based products such as jams, marmalades, and ...

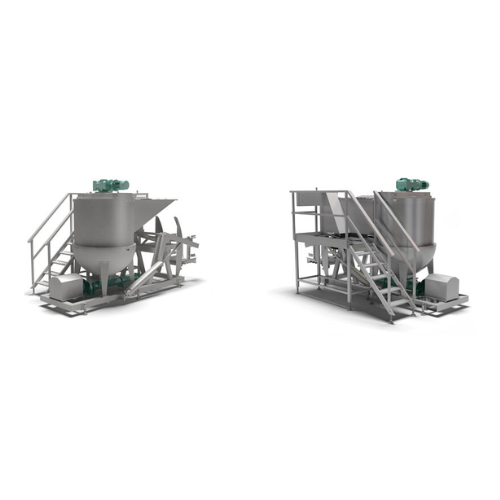

Concentrate drum emptying system
In the beverage industry, managing and processing large quantities of fruit concentrate fro...

Enzymatic inactivation system for fruits and vegetables
In the food processing industry, maintaining the natural color, v...

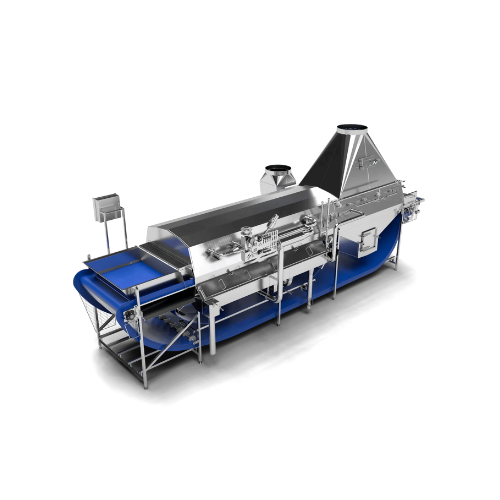

Evaporative blancher for fruits and vegetables
In the food processing industry, especially when dealing with fruits and ve...

Mash heater for core fruits and berries
For optimal juice and color extraction from core fruits and berries, precise mash h...

Crusher system for frozen juice processing
Processing frozen fresh juice or concentrate from open top drums presents sever...

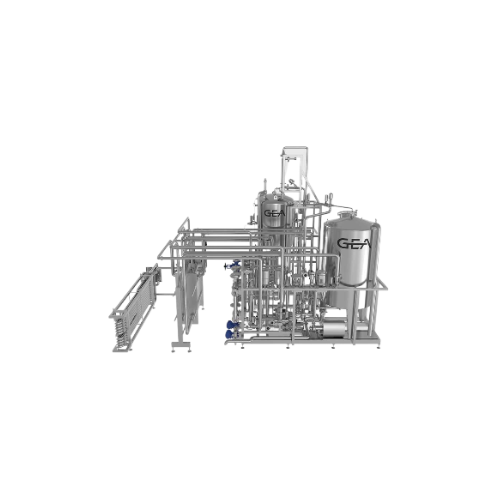

Tubular falling film evaporator for fruit juice concentrates
In the fruit juice industry, achieving high-quality concent...

Evaporator for juices and purees
In the processing of fruit and vegetable products, efficient concentration of juices and pu...

Hammer pulping system for fruit and vegetable processing
In fruit and vegetable processing, preparing produce for heating...

Turbo extractor for puree and concentrate production
In large-scale puree and concentrate production, ensuring flexibilit...

Fruit and vegetable washing solution with agitating action
In fruit and vegetable processing, maintaining cleanliness an...

Sterile cooling system for fruit preparations
In fruit preparation industries, maintaining sterility during cooling proces...

Ultrafiltration for fruit juices and nectars
Efficiently reducing yellow color or combating Thermo Acidophilic Bacterium (...

Aroma-batch blender for beverage production
In the beverage industry, precise aroma dosing and efficient powder dissolutio...

Fruit base processing technology for yoghurt and bakery
When producing fruit bases for yoghurt, bakery, and confectionery...

Washing and sorting line for fruits and vegetables
In food processing industries, ensuring that fruits and vegetables are...

Cold extraction deaeration system for fruit and vegetable purees
In the preparation of fruit and vegetable purees, maint...

Cold extraction and enzymatic deactivation for fruit and vegetable purees
When producing high-quality fruit and vegeta...

Aseptic filler for bag in drum or box
When tackling industrial-scale food processing, achieving a sterile environment for p...

Aseptic processing equipment for food products
In food manufacturing, maintaining product sterility and quality is crucial...

Automatic positive displacement filler for various liquids
When dealing with the filling of liquid products ranging from...

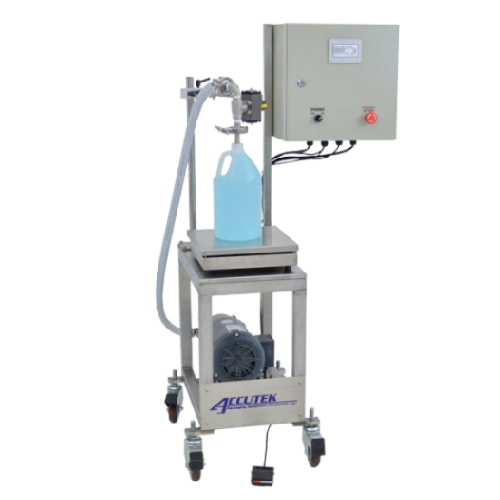

Accurate net weight filling for liquid and semi-liquid products
In industrial settings, ensuring the precise filling of ...

Semi-automatic piston injector for bakery products
In the bakery industry, precise and consistent filling of products suc...

Multifunctional washer for fruits and vegetables
In the fresh produce industry, removing soil and debris from the surface ...

Secondary solids recovery system for citrus pulp
In citrus processing, maximizing juice yield is crucial. Traditional meth...

Aseptic flash cooling for tomato and fruit concentrates
In the production of tomato and fruit concentrates, maintaining p...

Efficient agitation system for retort packages
In food processing, especially when dealing with retortable rigid or flexib...

High speed fruit and vegetable juicer
Achieving high-quality juice and puree production from whole fruits and vegetables in...

Industrial bin scrubbing system for fresh produce
In fresh produce processing, maintaining high levels of cleanliness and...

Aseptic bag filler for bulk containers
To ensure product sterility and extend shelf life, industries often struggle with co...

Industrial chopper/blender for frozen fruit processing
In fruit processing operations, especially when dealing with froze...

Industrial chopper blender for thawing frozen products
When processing frozen liquid products like juice concentrate or p...

Industrial-scale chopper and blender for frozen juice processing
In large-scale juice production, handling frozen concen...

Pasteurizer for non-alcoholic beverages
When producing non-alcoholic beverages like juices, smoothies, and concentrates, en...

Freeze concentration system for liquid food concentrates
When producing high-quality liquid food concentrates, effective ...

Industrial fruit washing and loading hopper system
In industries where high-volume fruit processing is required, ensuring...

Industrial multifiller for fruit and vegetable salads
In food production facilities where rapid and versatile filling pro...

Automatic palletizer for fruit and vegetable crates
In fruit and vegetable processing plants, the final stage involves ef...

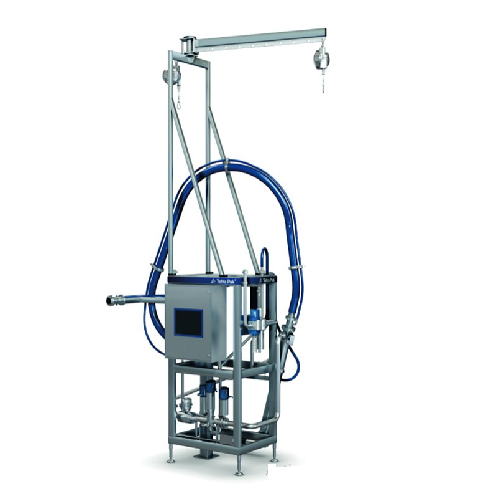

Drum unloader for liquid ingredients
In food and beverage processing, handling bulk liquid ingredients like fruit concentra...

Mango juice production line
In large-scale fruit juice manufacturing, maintaining high juice yield and quality is crucial. W...

Vacuum belt dryer for fruit, vegetable and herbal extracts
Organic volatile compounds from fruits, vegetables and herbs ...

Industrial jam vacuum cooker
In a production setup of agri-food preserves, sauces, and other condiments, vacuum cooking at 5...

Semi-Automatic Volumetric Liquid Filling Machine
Filling containers manually with liquid and viscous products is the metho...

Linear automatic bottling machine for liquids
Autonomous filling systems are a very widely utilized solution for the consi...

Batch cooker for fruit puree
The fruit pulp is used in many different bakery products, especially as a filling. Since fruit ...

Concentrator for fruit puree preparation
Fruit puree is often an ingredient of various fruit-flavored yogurts, which someti...

Evaporator for heat sensitive products
The removal of solvents when making products in industries like food, cosmetics, pha...

High pressure processing machine for juice
High-pressure processing (HPP) is one of the technologies in the manufacturing ...

Automatic bottling machine for beverage
One of the biggest challenges when bottling beverage drinks is that many of the bot...

Industrial bottle washing machine
Polyethylene terephthalate (PET) and glass bottles are widely used in the beverage indust...

Optical sorter for dried and frozen fruits
Dried fruits, frozen fruits, frozen vegetables and nuts present a challenge for...

Fruit pulping machine
When making fruit pulp, a pulping machine helps you remove seeds, stems, and skins from your fruit. How...

Continuous vacuum belt dryer
For gently drying liquid concentrates into granulates or powders, a vacuum drying solution is t...

Pilot extraction plant for natural ingredients
Before purchasing a full-scale extraction plant you need to exactly determi...

Pilot evaporation plant for the recovery of extracts
For development of concentrates of extracts based on water or ethano...

Continuous belt freeze dryer
Freeze drying is the most gentle and aroma protective method of drying, widely used in the coff...
